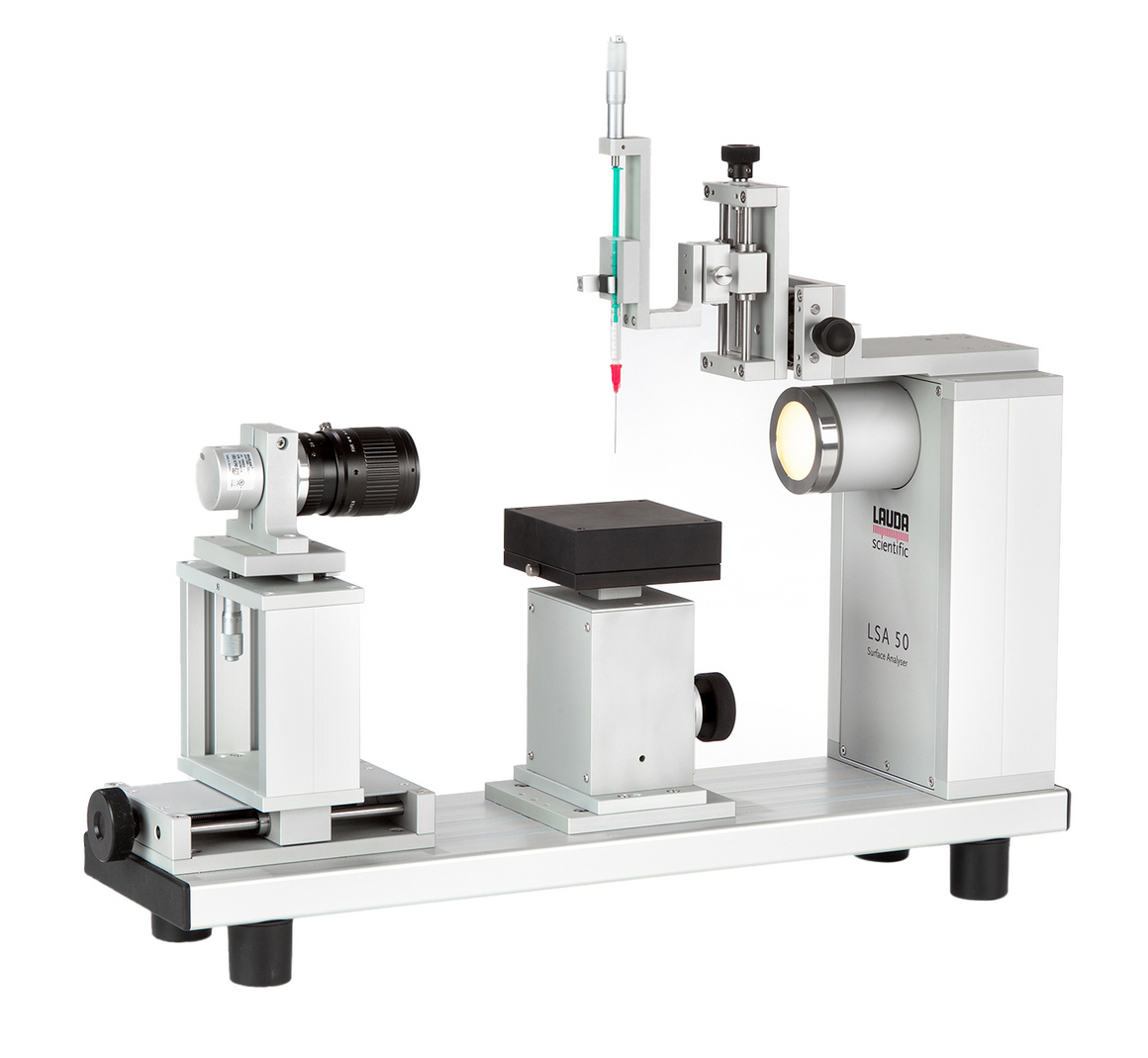

LAUDA Surface Analyzer LSA 50
The LSA 50 is a robust and precise instrument for contact angle measurements and for extremely accurate determination of surface and interfacial tension as well as the surface free energy.
With this versatile measuring capabilities it is the ideal device for research and teaching.
It represents a budget-friendly entry-level device while featuring high-end accuracy. Its large and easy to load sample stage provides a precise z-axis for easy handling.
Special Features:
- Compact size which requires only small bench space
- Versatile measuring methods
- Very easy handling with exchangeable manual dosing system
- Adjustable platforms for samples and camera
- Powerful algorithms enable precise drop analysis
Technical features:
|
Lens |
1,9 x telecentric lens |
|
Camera Type |
LCA-5 (USB 3) 1,280 x 960 px max. res., 54 fps |
|
Focus |
100 mm fine focus with adjustment axis |
|
Max. sample dimensions (L x W x H) |
∞ x 290 x 76 mm |
|
Max. sample weight |
15 kg self-locking w/o clamping |
|
Sample table dimensions (L x W) |
100 x 100 mm |
|
Travel distance of sample table |
Z-direction: 50 mm |
|
Measuring range for contact angles |
0 – 180 ° |
|
Measuring range for surface and interfacial tensions |
0.01...2,000 mN/m Precision: 0.1 % |
|
Power supply |
100 /240 V AC, 50 / 60 Hz. |
|
Dimensions (W x D x H) |
600 x 160 x 480 mm |
|
Weight, net |
approx. 15,5 kg |
